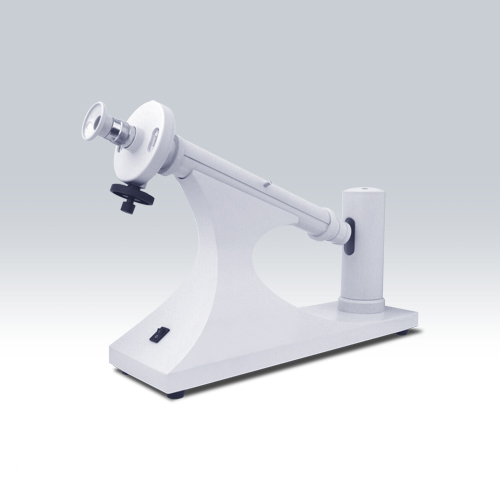

WXG-4 Manual Polarimeter

short description:

Easy-to-use manual polarimeter, measurement range from -180° to +180°. The instrument is suitable for measuring the optical rotation of optically active substances, accuracy: 0.05°.

Send email to us

Product Detail

Product Tags

Features

WXG-4 polarimeter is installed with a 589nm sodium lamp. Switch on the power, the polarized light radiates to the polarizer filter. The user is able to observe the distinct visual fields through eyepiece. Place the test tube into the measuring chamber and rotate the vernier knob until the visual fields appear the equal brightness. Recording the vernier scale. Measurement is done.

Applications

• Education

• Food and sugar industries

Specifications

Model		WXG-4
Range		±180°
Scale Value		1°
Vernier		0.05°
Magnifier		3X
Light Source		Sodium lamp
Wavelength		589nm
Tube Length		50, 100 or 200mm
Power		AC 220V/50Hz
Dimensions		500(L)×135(W)×330(H)mm
Weight		5kg
