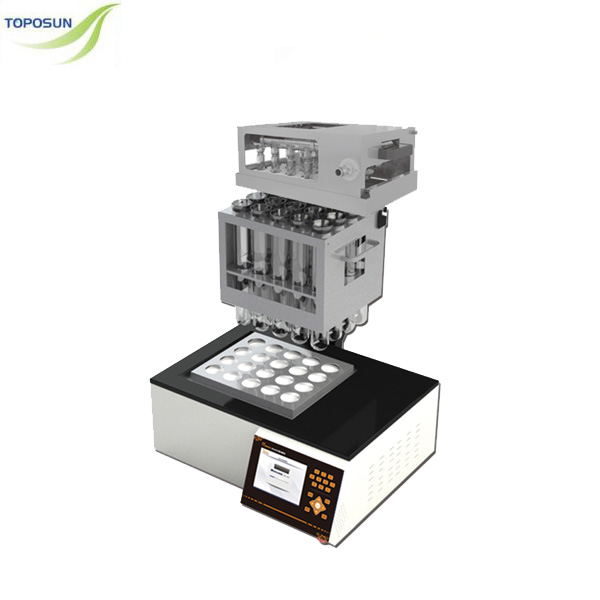

TPS-SH420F Kjeldahl digestion system, Graphite Digester, graphite digestion system with waste gas collection hood

short description:

the SH420F Kjeldahl Digestion ststem adopts globally advanced high-temperature infrared t radiation heating technology and microprocessor control platform, boasts accurate temperature control and quick temperature rise. It has two kinds of temperature rise mode: linear and curve temperature rise mode, and offers 20 digestion programs for control of temperature rise curves.

Send email to us

Product Detail

Product Tags

product details

the neutralization system has many functions such as triple filtration, condensate recovery of exhaust gas, filtration and neutralization device. The product adopts high-quality Anticorrosive Pumps, low noise, strong suction, reduce exhaust emissions,eco-friendly.

Characteristics

·20 positions, enhance working efficiency rapidly.
·Graphite block have longer life after special anti-oxidation processing and heating more uniform.
·It adopt advanced insulation technology, eco-friendly, reduce energy intensity maximum limitedly.
·Corrosion-resistant design.
·It adopt advanced PID temperature control technology, high accuracy heating up to 400℃ only cost 25minutes.
·Temperature control model: Program control, curve and linear temperature rise.
·Multi-protection, Over-current protection, high temperature warning, overload protection.
·It adopts 5.7” color screen, easy for use.
·Standard configuration with waste gas collection hood.

Technical data

Temperature range	Room temperature +5 - 450℃
Temperature accuracy	±1℃
Heating method	Infrared heating and high-purity graphite conduction
Heating insulation method	unique air duct insulation technology
Digestion tube capacity	300ml
Capacity per batch	20pcs/batch
Power supply	220 VAC±10% 50HZ
Power	3600W
Dimensions	515mmX458mmX730mm
Net weight	40Kg
