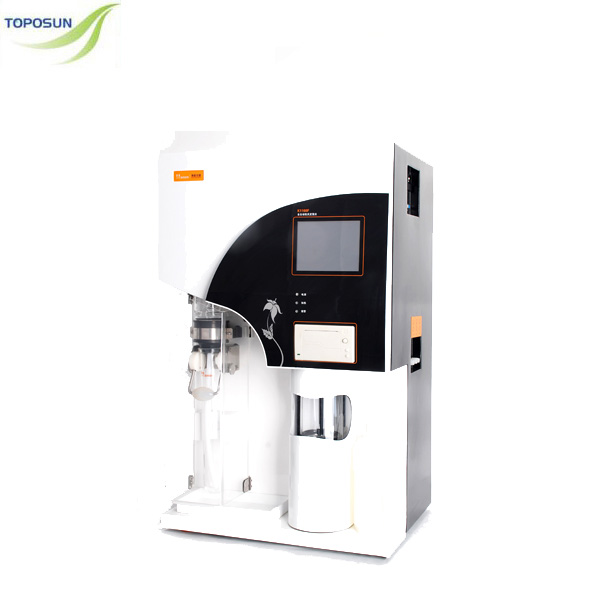

TPS-K1100F Automatic Kjeldahl Analyzer, protein analyzer, nitrogen analyzer with automatic distillation and titration

short description:

K1100F Automatic Kjeldahl Analyzer is an automatic device integrating distillation and titration functions designed based on classic Kjeldahl nitrogen determination method. It’s equipped with the latest core control system, powerful automation and high-quality components, can easily achieve automatic waste discharge and cleaning of digestion tubes and titration cups, control steam supply and real-time detection of condensation temperature. High-accuracy charging pump and titration system ensure test results accuracy, and multiple fluid level detection gives smooth test process.

Send email to us

Product Detail

Product Tags

Feature

1.High accuracy dozing and working: adopt 4 KNF pumps work for dozing, measurement liquid volume.

2. Complete compatible design: Using 300mL tubes(φ42mm), compatible with con-generic products perfectly

3. Easy Maintenance: Pre-install full functions of cleaning, include Digestion tube cleaning, Receiving cup cleaning, Alkali pipeline cleaning, Boric acid pipeline cleaning, Acid washing, Steam bottle evacuation. Support customer make the routine maintenance easily.

K1100F Automatic

Kjeldahl Analyzer is an automatic device integrating distillation and titration functions designed based on classic Kjeldahl nitrogen determination method. It’s equipped with the latest core control system, powerful automation and high-quality components, can easily achieve automatic waste discharge and cleaning of digestion tubes and titration cups, control steam supply and real-time detection of condensation temperature. High-accuracy charging pump and titration system ensure test results accuracy, and multiple fluid level detection gives smooth test process.

Complete microcomputer control
Automatic completion of distillation, titration,calculation, printing, waste discharge and multiple protections, i.e.failure self-detection,hints of condensed water shortage, displacement of safety door and digestion tube and so on.

Large LCD Touch Screen Panel
Large LCD touch screen gives visual operation and abundant information,enabling user to have a good command of it.

K1100F
Complete compatible design
Compatible with congeneric products perfectly

Performance advantage

Compatible with φ42 digestion tube
Titration while distillation, enhance the efficiency rapidly.
User friendly design, color touch screen, easy for operating
Faster ARM system, faster operating rate
Digester model SH220F and SH420F is matching K1100F, with φ42 digestion tube

Characteristics:

·Automatic distillation, titration, calculation, printing, drain and cleaning function, safety and saving-time.
·Visibletitration cup design gives operatorreal-time control of the whole test process.
·Steam flow is controllable, satisfying differenttest requirements.
·Regent barrel enjoys fluid absence warning function,ensuring smooth test going.
·High-precision charging pump and titration system ensure test results accuracy.
·Large LCD touch screen gives visual operationand abundant information,enabling user to have a good commandof it.
·USB or RS485 interface is optional for PC connection.
·Distilled liquid temperature is detected real time. Emergency stop against temp anomaly.
·Double distillation modelmeets different experiments, to retard the speed of acid-base reaction.
·Digestion tube fast drain function is used to avoid operator touch distilled hot reagents, protecting operators.
·Printer is built in.

Measuring range	0.1mg ~200mg N
Analysis time	5~10min/sample
Reproducibility	Average value relative error ±0.5%
Recovery	>=99.5%
Burette volume	1.0μL/step
Sample capacity	solid<=5g/sample, liquid<=20mL/sample
Water consumption in the distillation process	1.5L/min
Data storage capacity	1800 groups
Power supply	220VAC±10%, 50Hz
Power	2Kw
Net weight	38Kg
Dimensions	455mm×391mm×730mm

Farinogram

The Extensogram includes:

* Resistance to extension

* Extensibility

* Maximum

* Area below the curve (energy)

* Ratio number (extensibility/resistance)

* Extensibility/maximum

From these values, the rheological properties of the respective flour and the influence of flour additives (ascorbic acid, enzymes, emulsifiers) on the flour quality can be clearly recognized.

Furthermore, the "rheological optimum" for the respective application of the flour can be determined and adjusted on the basis of the evaluation data.

Motor power	0.020 Kw+0.020W+0.020W
Mains	AC 220V 50Hz
Sample weight	300 g of flour+6 g of sale +dist.water
Speed of balling unit	83±3rpm
Speed of dough roll	15±1rpm
Speed of stretching hook	14.5±0.5rpm
Force measurement	electronically
PC port	USB
Dimensions with try holder arms (H * W * D)	980 * 530 * 940 mm
Weight approx.	80 kg
