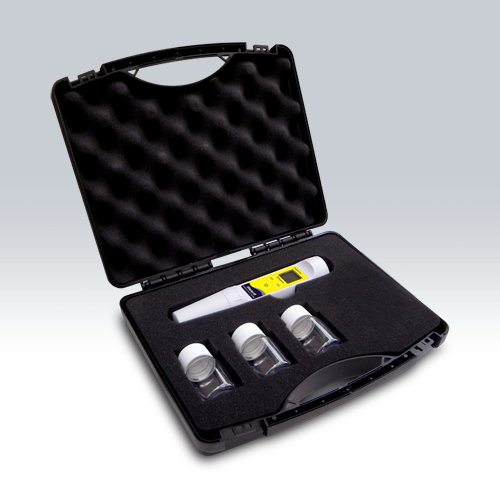

SALscan20 Pocket Salinity Tester
• High-range pocket salinity tester contains the conductivity measurement mode.
• Platinum conductivity cell provides the quick and reliable measurement results.
• 1 to 3 points calibration with automatic recognition for conductivity standards.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-Read function senses and locks the measurement endpoint.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, temperature unit, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environments.
| Model | SALscan20 |
| Salinity | |
| Range | 0.00 to 80.00ppt |
| Resolution | 0.01ppt |
| Accuracy | ±1% F.S. |
| Conductivity | |
| Range | 100.0 to 2000µS/cm, 20.00, 200.0mS/cm |
| Resolution | 0.01, 0.1, 1 |
| Accuracy | ±1% F.S. |
| Calibration Points | 1 to 3 points |
| Calibration Solutions | 1413µS, 12.88mS/cm, 111.8mS |
| Temperature | |
| Range | 0 to 60°C/32 to 140°F |
| Resolution | 0.1°C/0.1°F |
| Accuracy | ±1°C/±1.8°F |
| Offset Calibration | 1 point |
| Calibration Range | Reading ±10°C |
| General Specifications | |
| Temperature Compensation | 0 to 60°C/32 to 140°F, automatic |
| Temperature Coefficient | 2%/°C, linear |
| Reference Temperature | 25°C |
| Cell Constant | K=1 |
| Hold Function | Manual or auto-endpoint |
| Auto-Power Off | 8 minutes after last key pressed |
| Sensor Type | ECSCAN-C10-10K |
| Display | Dual-line LCD (21×21mm) |
| Power | 2×1.5V AAA batteries |
| Battery Life | Approximately 200 hours of continuous use |
| Dimensions | 185(L)×40(Dia.)mm |
| Weight | 100g |
