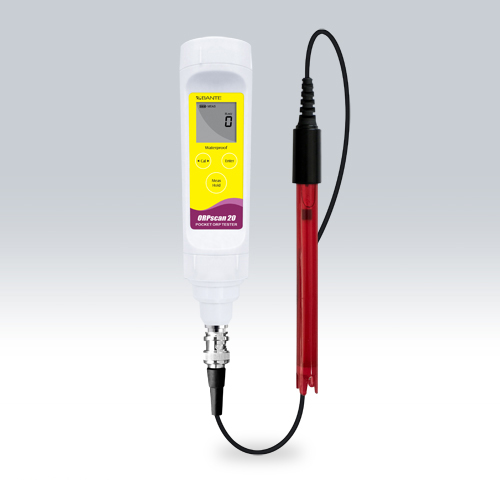

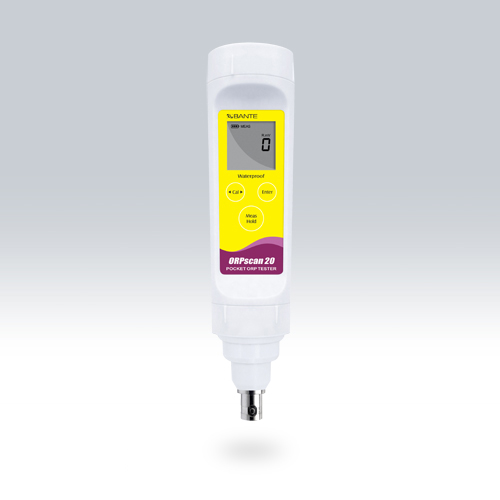

ORPscan20 Pocket ORP Tester

short description:

Multipurpose pocket ORP tester is installed with a BNC connector that used for connecting a variety of ORP electrodes. The meter is widely used in environmental and industrial fields.


Product Detail

Product Tags

Features

• Multipurpose ORP tester contains the relative and absolute millivolt measurement modes.

• 1 point offset calibration allows adjusting the displayed value to a known standard.

• Auto-Read function senses and locks the measurement endpoint.

• Auto-Power Off effectively conserves battery life.

• Reset function automatically resumes all settings back to the factory defaults.

4

Applications

• Chromate reduction

• Cyanide oxidation

• Swimming pool water

• Pulp bleaching

• Cooling towers

• Aquaculture

• Drinking water

• Other redox applications

Specifications

   Model ORPscan20
   mV Range ±999mV
   Relative mV Range ±999mV
   Resolution 1mV
   Accuracy ±2mV
   Calibration Point 1 point
   Hold Function Manual or auto-endpoint
   Auto-Power Off 8 minutes after last key pressed
   Sensor Type 5 series ORP electrodes
   Connector BNC
   Display Dual-line LCD (21×21mm)
   Power 2×1.5V AAA batteries
   Battery Life Approximately 200 hours of continuous use
   Dimensions 175(L)×40(Dia.)mm
   Weight 100g
