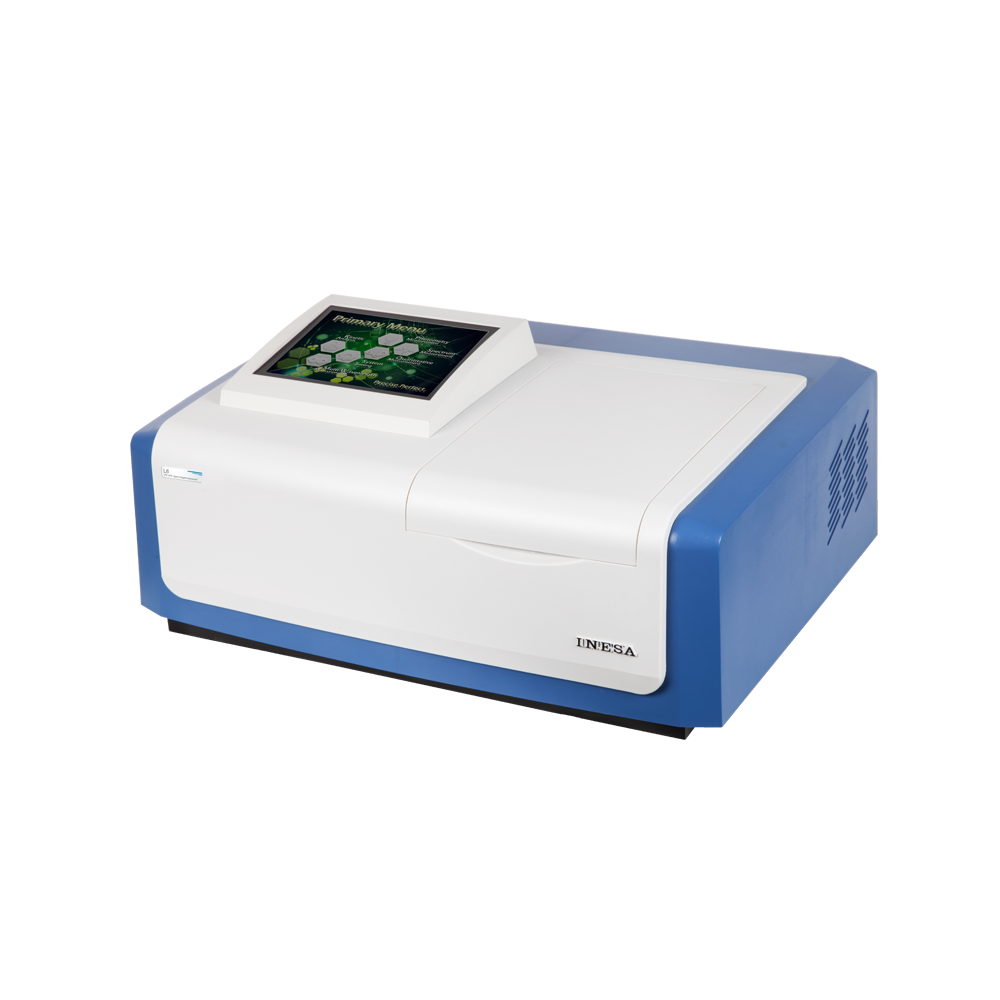

N2S VIS Spectrophotometer, being combined with an ARM processed core, has test speeds and functions possessed by high-end instruments.  The instrument can meet the requirement of quantitative analysis for most samples conducted within the visible and ultraviolet-visible spectral range in conventional laboratories and is suitable for use in medicine and health, clinical examination, biochemical, petrochemical, environmental protection, quality control departments, colleges and universities and others.
● 7-inch multi color touch-screen and patented technology to achieve simple and effective human-computer interaction with a clear display of test data.
● A built- in thermal printer (optional) to achieve printout of test results so as to facilitate the formation and retention of data reports.
● A USB communication port and UVWIN8 professional data processing software (optional) to achieve data processing and mapping functions and storage of massive amounts of data files, and to facilitate the secondary development by customers.
● Automatic wavelength setting, fast and accurate.
● Functions such as wavelength scanning (S model only), kinetic time scanning, automatic wavelength, linear regression, direct read-out of concentration, peak detection, regular printing and etc.
● Advanced power shut-down protection measures to memorize detected data, regression equation and instrument correc- tion parameters to achieve fast initialization.
● Tungsten lamp with lifetime protection.

Main Features

● Automatic wavelength settings
● 7-inch multi color touch-screen
● Sample compartment for 5-100mm cuvettes
● Equipped with USB port
● Precise automatic T/A changeover
● Internal printer optional
● Automatic zero and full scale adjustment
● Software optional
● Direct concentration read-out and concentration factor setting function

Specificatons

Photometry:     Split Beam

Monochromator Type:    Czerny-Turner

Focal Length:    160mm

Grating:    1200 lines/mm

Detector:     Silicon Photocell

Spectrum Bandwidth:    2nm

Wavelength Setting:     7-inch color touch-screen

Wavelength Range:    325-1100nm

Wavelength Accuracy:    ±1nm

Wavelength Repeatability:    ≤0.5nm

Scanning Speed:    Fast-Medium-Slow

Stray Light  :     ≤0.1%T( at 360nm NaNo2 )

Photometric Range:     0.0-200.0% T

-0.301-4.000 A

0.000-9999 C

Photometric Accuracy:    ±0.5% T

±0.004 Abs (0-0.5A)

±0.008 Abs (0.5-1A)

Photometric Repeatability:    ≤0.2% T

0.002 Abs (0-0.5A)

0.004 Abs (0.5-1A)

Baseline:     ≤±0.002 A(335-1090nm)

Noise:    100%（T）noise≤0.2%(T) ， 0%（T）noise≤0.1%(T)

Drifting:    ≤0.003 Abs/h (at 500nm after 2h warm up)

Power:    AC220V±22V 50Hz±1Hz, 100W

Packaging Size:    630mm X 535mm X 405mm 0.14M³ 21kg

Standrad Accessories

● Operation manual 1

● Thermal Plotter
● Glass cuvette 1cm 4pcs
● Power cable 1
● Fuse 2pcs
● Cuvette holder 10mm

Optional Accessories

● UV WIN8 Spectrum data processing software

● Cuvette holder 100mm

● Cuvette holder 50mm
