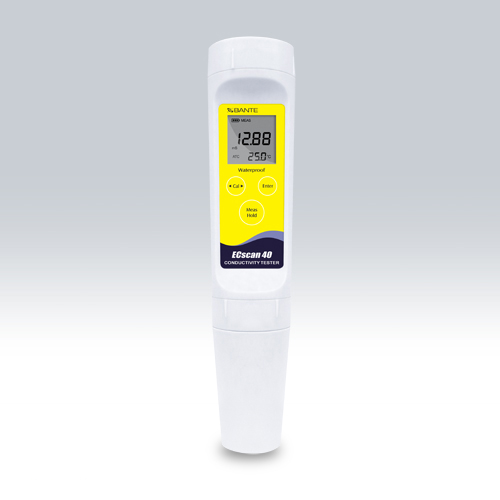

ECscan40 Pocket Conductivity/TDS/Salinity Tester
• Multiparameter pocket salinity meter contains the conductivity and TDS measurement modes.
• Platinum conductivity cell provides the quick and reliable measurement results.
• 1 to 3 points calibration with automatic recognition for conductivity standards.
• Automatic temperature compensation corrects conductivity measurment to reference temperature.
• Auto-Read function senses and locks the measurement endpoint.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, TDS factor, temperature unit, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environments.
| Model | ECscan40 | |
| Conductivity | ||
| Range | 0 to 20.00, 200.0, 2000µS/cm, 20.00mS/cm | |
| Resolution | 0.01, 0.1, 1 | |
| Accuracy | ±1% F.S. | |
| Calibration Points | 1 to 3 points | |
| Calibration Solutions | 84µS, 1413µS, 12.88mS | |
| TDS | ||
| Range | 0 to 10.00, 100.0, 1000ppm, 10.00, 20.00ppt | |
| Resolution | 0.01, 0.1, 1 | |
| Accuracy | ±1% F.S. | |
| TDS Factor | 0.1 to 1.0 (default 0.5) | |
| Salinity | ||
| Range | 0.00 to 10.00ppt | |
| Resolution | 0.01ppt | |
| Accuracy | ±1% F.S. | |
| Temperature | ||
| Range | 0 to 60°C/32 to 140°F | |
| Resolution | 0.1°C/0.1°F | |
| Accuracy | ±1°C/±1.8°F | |
| Offset Calibration | 1 point | |
| Calibration Range | Reading ±10°C | |
| General Specifications | ||
| Temperature Compensation | 0 to 60°C/32 to 140°F, automatic | |
| Temperature Coefficient | 2%/°C, linear | |
| Reference Temperature | 25°C | |
| Cell Constant | K=1 | |
| Hold Function | Manual or auto-endpoint | |
| Auto-Power Off | 8 minutes after last key pressed | |
| Sensor Type | ECSCAN-C1-10K | |
| Display | Dual-line LCD (21×21mm) | |
| Power | 2×1.5V AAA batteries | |
| Battery Life | Approximately 200 hours of continuous use | |
| Dimensions | 185(L)×40(Dia.)mm | |
| Weight | 100g |
