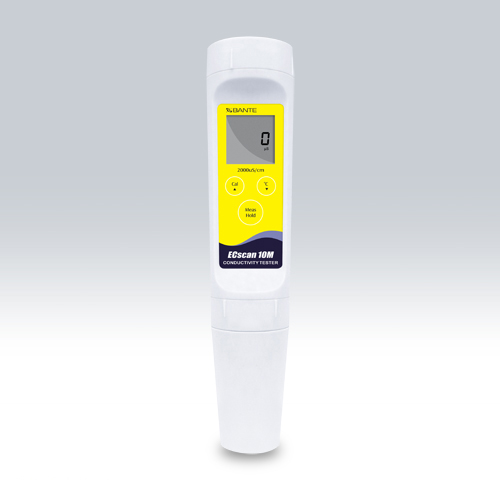

ECscan10M Pocket Conductivity Tester
• Mid-range pocket conductivity tester is equipped with a platinum sensor.
• 1 point push-button calibration allows using the custom calibration solution.
• Automatic temperature compensation corrects the conductivity measurment to reference temperature.
• Hold function momentarily freezes reading for easy viewing and recording.
• Auto-Power Off effectively conserves battery life.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environment.
• Swimming pools and aquariums
• Beverage industry and other industrial applications
| Model | ECscan10M |
| Conductivity | |
| Range | 10 to 1999µS/cm |
| Resolution | 1µS/cm |
| Accuracy | ±1% F.S. |
| Calibration Point | 1 point |
| Calibration Solution | 1413µS/cm |
| Temperature | |
| Range | 0 to 50°C |
| Resolution | 1°C |
| Accuracy | ±1°C |
| General Specifications | |
| Temperature Compensation | 0 to 50°C, automatic |
| Temperature Coefficient | 2%/°C, linear |
| Reference Temperature | 25°C |
| Cell Constant | K=1 |
| Hold Function | Manual |
| Auto-Power Off | 8 minutes after last key pressed |
| Sensor Type | ECSCAN-C1-100K |
| Display | Single-line LCD (21×21mm) |
| Power | 3×1.5V LR44 micro alkaline batteries |
| Battery Life | Approximately 150 hours of continuous use |
| Dimensions | 185(L)×40(Dia.)mm |
| Weight | 100g |
