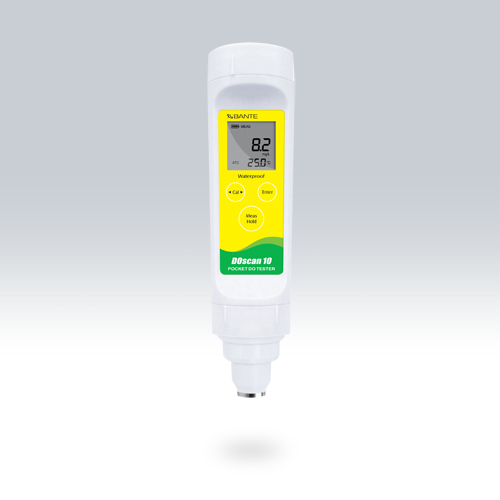

DOscan10 Pocket Dissolved Oxygen Meter

short description:

Economical pocket dissolved oxygen meter, 1 or 2 points calibration, setup menu contains 6 options. The meter is suitable for education applications, accuracy: 0.5mg/L.


Product Detail

Product Tags

Features

• Economical pocket dissolved oxygen meter comes with a polarographic sensor.

• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.

• Salinity and barometric pressure compensations eliminate the measurement error.

• Automatic temperature compensation ensures accurate readings over the entire range.

• Auto-Read function senses and locks the measurement endpoint.

• Auto-Power Off effectively conserves battery life.

• Setup menu allows setting the number of calibration points, concentration unit, temperature unit, etc.

• Reset function automatically resumes all settings back to the factory defaults.

15266508252109

Applications

• Aquaculture and aquariums

• Education and other applications

Specifications

   Model DOscan10
   Dissolved Oxygen
   Range 0.0 to 20.0mg/L
   Resolution 0.1mg/L
   Accuracy ±0.5mg/L
   % Saturation of Oxygen
   Range 0.0 to 200.0%
   Accuracy ±2.0%
   Resolution 0.1%
   General Specifications
   Calibration Points 1 or 2 points
   Temperature Compensation 0 to 40°C/32 to 104°F, automatic
   Pressure Correction 450 to 850mmHg, manual
   Salinity Correction 0 to 35g/L, manual
   Hold Function Manual or auto-endpoint
   Auto-Power Off 8 minutes after last key pressed
   Connector 6-pin nimi-DIN
   Display Dual-line LCD (21×21mm)
   Power 2×1.5V AAA batteries
   Battery Life Approximately 200 hours of continuous use
   Dimensions 175(L)×40(Dia.)mm
   Weight 100g
