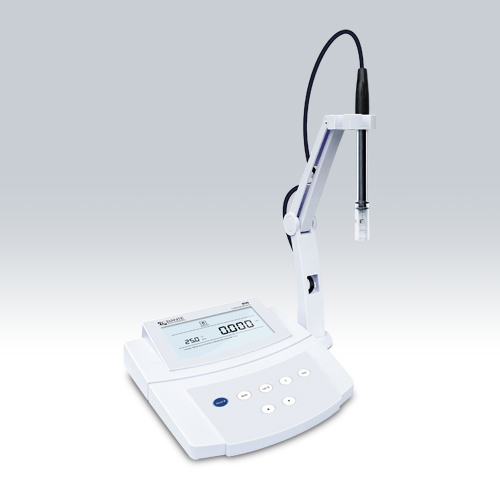

DDS-12DW Benchtop Conductivity Meter
• Classical benchtop conductivity meter is equipped with a backlit LCD display.
• 1 to 3 points calibration with automatic recognition for conductivity standards.
• Automatic temperature compensation corrects conductivity measurment to reference temperature.
• Auto-Read function senses and locks the measurement endpoint.
• Setup menu allows setting the number of calibration points, cell constant, temperature coefficient, auto-power off, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Water and wastewater treatment
• Research and educations
• Chemical industry and other laboratory applications
| Model | DDS-12DW |
| Conductivity | |
| Range | 0.01 to 20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Accuracy | ±1% F.S. |
| Calibration Points | 1 to 3 points |
| Calibration Solutions | 10µS, 84µS, 1413µS, 12.88mS, 111.8mS |
| Temperature | |
| Range | 0 to 105°C/32 to 221°F |
| Resolution | 0.1°C/0.1°F |
| Accuracy | ±1°C/±1.8°F |
| Offset Calibration | 1 point |
| Calibration Range | Reading ±10°C |
| General Specifications | |
| Temperature Compensation | 0 to 100°C/32 to 212°F, manual or automatic |
| Temperature Coefficient | Linear (0.0 to 10.0%/°C) |
| Reference Temperature | 25°C |
| Cell Constant | K=0.1, 1, 10 or custom |
| Hold Function | Manual or auto-endpoint |
| Connector | 6-pin nimi-DIN, 3.5mm jack socket |
| Display | Custom LCD (120×60mm) |
| Power | DC9V, using AC adapter, 220V/50Hz |
| Dimensions | 210(L)×205(W)×75(H)mm |
| Weight | 1.5kg |
