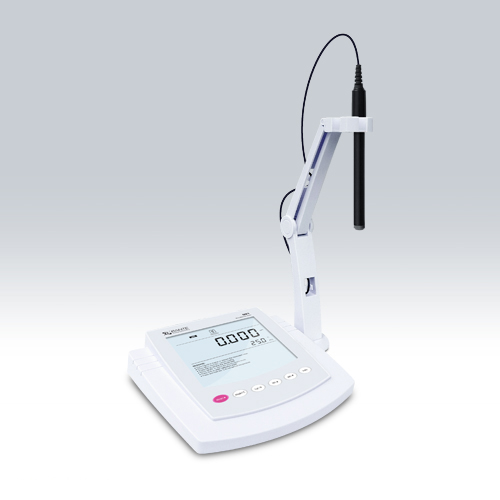

Bante931-Ag Benchtop Silver Ion Meter
• Precision benchtop fluoride ion meter is equipped with a large backlit LCD display.
• 2 to 5 points calibration, including the 8 concentration points can be selected.
• Direct ion concentration readout simplifies the measurement process.
• Selectable concentration units - ppm, mg/L and mol/L.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-Read function senses and locks the measurement endpoint.
• Calibration due alarm prompts user to calibrate the meter regularly.
• Automatic electrode diagnosis shows the calibration points and slopes.
• Setup menu allows setting the number of calibration points, ionic valency, stability criteria, temperature unit, auto-power off, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface is easy to transfer data to PC.
| Model | Bante931-Ag | |
| Ion Concentration | ||
| Range | 1×10-7 to 1M, 0.01 to 107900ppm | |
| Resolution | 0.001, 0.01, 0.1, 1 | |
| Accuracy | ±1% F.S. | |
| Calibration Points | 2 to 5 points | |
| Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 | |
| Measurement Units | ppm, mg/L, mol/L, mmol/L | |
| mV | ||
| Range | ±1999.9mV | |
| Resolution | 0.1mV | |
| Accuracy | ±0.2mV | |
| Temperature | ||
| Range | 0 to 105°C/32 to 221°F | |
| Resolution | 0.1°C/0.1°F | |
| Accuracy | ±0.5°C/±0.9°F | |
| Offset Calibration | 1 point | |
| Calibration Range | Reading ±10°C | |
| General Specifications | ||
| Temperature Compensation | 0 to 100°C/32 to 212°F, manual or automatic | |
| Stability Criteria | Low or high | |
| Calibration Due Alarm | 1 to 31 days or off | |
| Memory | Stores up to 500 data sets | |
| Output | USB communication interface | |
| Connector | BNC, 3.5mm jack socket | |
| Display | Custom LCD (125×100mm) | |
| Power | DC5V, using AC adapter, 220V/50Hz | |
| Dimensions | 210(L)×188(W)×60(H)mm | |
| Weight | 1.5kg |
