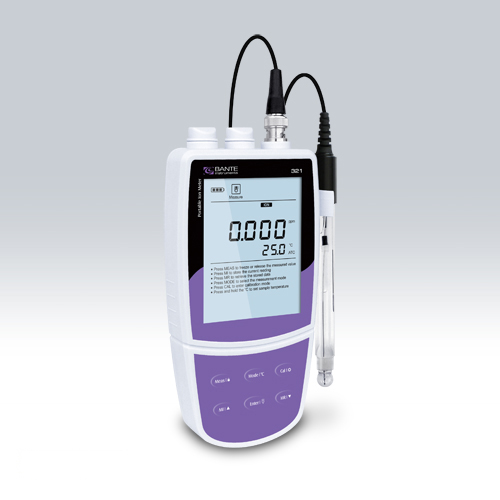

Bante321-Cd Portable Cadmium Ion Meter

short description:

Professional portable cyanide ion meter, suitable for outdoor applications, accuracy: 1% F.S.


Product Detail

Product Tags

Features

• Professional portable cadmium ion meter is equipped with a backlit LCD display.

• 2 to 5 points calibration from low to high concentrations.

• Selectable 8 concentration calibration points, including the 0.001 to 10000.

• Selectable concentration units - ppm, mg/L and mol/L.

• Automatic electrode diagnosis shows the calibration points and slopes.

• Automatic temperature compensation ensures accurate readings over the entire range.

• Direct ion concentration readout simplifies the measurement process.

4

• Auto-Read function senses and locks the measurement endpoint.

• Calibration due alarm prompts user to calibrate the meter regularly.

• Auto-Power Off effectively conserves battery life.

• Setup menu allows setting the number of calibration points, stability criteria, temperature unit, date and time, etc.

• Reset function automatically resumes all settings back to the factory defaults.

• Expanded memory stores or recalls up to 500 data sets.

• USB communication interface for data transfer or connecting a power adapter to meter.

Specifications

   Model Bante321-Cd
   Ion Concentration
   Range 1×10-6 to 0.1M, 0.01 to 11200ppm
   Resolution 0.001, 0.01, 0.1, 1
   Accuracy ±1% F.S.
   Calibration Points 2 to 5 points
   Calibration Solutions 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000
   Measurement Units ppm, mg/L, mol/L, mmol/L
   mV
   Range ±1999.9mV
   Resolution 0.1mV
   Accuracy ±0.2mV
   Temperature
   Range 0 to 105°C/32 to 221°F
   Resolution 0.1°C/0.1°F
   Accuracy ±0.5°C/±0.9°F
   Offset Calibration 1 point
   Calibration Range Reading ±10°C
   General Specifications
   Temperature Compensation 0 to 100°C/32 to 212°F, manual or automatic
   Stability Criteria Low or high
   Calibration Due Alarm 1 to 31 days or off
   Auto-Power Off 10, 20 or 30 minutes after last key pressed
   Memory Stores up to 500 data sets
   Output USB communication interface
   Connector BNC, 3.5mm jack socket
   Display Custom LCD (80×60mm)
   Power 3×1.5V AA batteries or DC5V power adapter
   Battery Life Approximately 150 hours (turn off the backlight)
   Dimensions 170(L)×85(W)×30(H)mm
   Weight 300g
